Manila Automatic Gates & Garage Doors Automatic / Electric Gates & Garage Doors



NOTICE: All our gate / garage door operators are OUT of STOCK.



Automatic gates & swing doors product notice








Swing Gate Operator



Automatic, remote controlled swing gate. Metro Manila, Philippines





Automatic swing gate parts: remote controll, arm, switch, control panel...

    Advanced Features:

  1. Self-locking and reversible electromechanical gear motor.

  2. Body made of die-cast aluminum and quality painted

  3. Water proof design

  4. Adjustable output thrust

  5. Built-in micro-switches for gate opening arrest

  6. Over-heat and over-current protection

  7. Time-delay protection

  8. Electric lock DC 12V

  9. Emergency release key in case of power failure

  10. Two remote control transmitter

  11. One control unit for motors, control panel available to photo cells, loop detector, IC card reader and alarm

  12. Easy installation, full fitting accessories are provided in motor kits

  13. Extremely silent





Technical Specification

Model

K207A

K207U

Power supply

220-240V,  50/60 Hz 1100-120V,  60 Hz

Motor speed

1250 rpm 1500 rpm

Output power

110W 100W

Maximum thrust

1500N

Opening time

< 22 seconds

Working angel

up to 105 deg.

Max weight per leaf

200 kilo grams

Max length per leaf

2.5 meters

Duty cycle

25%

Working temperature

-40 degrees Celsius - 70 degrees Celsius

Control Box

KZX-207W KZX-207U






Garage Sectional Door Operator



automatic garage rolling door: remote control, safety mechanism & manual safety lock.



Technical Specification

Model

WD-KMJ03 WD-KMJ04

Power supply

110 / 220 V 110 / 220 V

Output power

100W 150W

Waiting power

2W 150W

Working moment

800N CM 2W

Working distance

2M to 4M 1200N CM

Transmission Mode

Roller Chain 2M to 4M

Illumination

24V / 10W Roller Chain

Working temperature

-40 degrees Celsius - 70 degrees Celsius

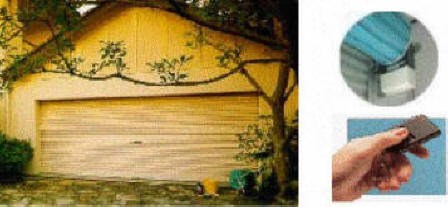

Garage Rolling Door Operator





Automatic rolling door with auto reversing mechanism, infrared beam and courtesy light.





Advanced Features:



The KJ30 light duty automatic rolling door operator is designed to suit most residential and commercial rolling garage doors equipped with balanced spring settings. It may be fitted with single and double width doors up to 3 meters high and 5.5 meters wide. It offers convenience, safety and security for garages.

  1. Remote control - two (2) remote transmitters equipped for operation from a distance of 30 to 50 meters.

  2. Automatic reversing system - ensures the door returns to an open position when it meets an obstacle while in a closing mode.

  3. Courtesy light - light automatically when the door is in use. The light stays on for approximately 3 minutes and automatically turns off.

  4. Easy manual "Disengagement Pull Cord" - just pull the cord to disengage operator for manual action in cases of power failure.

  5. Auto close mode - to set your garage door to close 30 seconds after opening.

  6. Safety infrared beam - can be fitted to unit for extra safety protection. Used during auto-close mode.

  7. Open and close buttons - built in the unit to help you set the open and close limit position more quicker and more precisely.

  8. Auto run time - If the motor is left running for whatever reason, the auto-run time will turn off the motor after 60 seconds.



    Model

    KJ30

    Power supply

    220V, 50 Hz

    Output power

    100W

    Rated load

    25 kilo grams

    Roller diameter

    270 mm.

    Roller revolution

    3.5 rpm

    Lift height

    3 meters

    Motor weight

    7.5 kilo grams




Price List



Product Description

Price (PhP)

Swing Gate Set

Gate operator

2 Remote control transmitters

Free installation

P35,000

Garage Sectional Door Set

Garage motor operator

Sectional door and hardware

Two remote control transmitters

Safety beam

Free installation

P65,000

Garage Rolling Door Set

Rolling motor operator

Rolling door and hardware

Two remote control transmitters

Safety beam

Free installation

P65,000






Automatic gates & swing doors product notice



Swing Gate: Frequently Asked Questions (FAQ):



What is included?

  1. Two actuator arm
  2. Water resistant control box
  3. Mounting hardware.
  4. Radio Receiver
  5. Two radio transmitter (remote control device)
  6. Installation manual
  7. One year manufacturer's limited warranty
  8. Easy plug in terminal strip for adding accessories
  9. A built-in safety feature that reverses the gate when obstructed.
  10. Electronic lock.
  11. Manual keys.
  12. Push button switch.

What is not included?

  1. Wires and conduit outlets.
  2. The gate
  3. Circuit breaker.
  4. Safety beam.



What’s the average life span of a garage door opener?

Average lifespan of 8-25 years can be expected. Door opener can exceed this life span depending on the use.



How long will it take to install?
Swing gate Operator will take normally 4-8 hours for installation.



How is the unit installed?
Unit is installed by qualified installer and electrician. A drill and steel bits, angle grinder, welding machine, screwdriver, wrenches are all that are required. Running voltage wire may be the hardest part of the installation because wires and conduit outlet need to bury on concrete cement.



Can I put a push button on the operator and control it from the house?
Push button switch is included in the package and can put one anywhere up to 100feet away from the gate.  Installation expense in excess of 100feet will be shouldered by the buyer.



Can I return the product(s)?
We will refund your entire purchase price within 30 days of purchase for any reason. Refunds will be given only when the unit(s) are received. We reserve the right to deduct any damages to products and packaging and installation expenses.



What is a push-to-open application?
If your gates open towards your house, that is a pull-to-open application. Push-to-open is opening your gate away from your house.  The operator is designed to pull-to-open OR push-to-open and requires separate installation procedure.



What happens during power failure?
Use the keys to unlock the cylinder arm and electric lock. Then the  gate can be operated manually.



My operator worked great after the original installation but has quit working after a while. What will I do?
Check the manual for trouble shooting guide. If problem still occur, call our office for technical assistance and avail of 1 year warranty of parts and service.



If I order, how long does it take to get it?
We stock the operators and accessories. Confirmed order can be completed in 1-5 days and additional 1 day for installation.



My gate is hard to open and close by hand. Will the operator help this situation?
No. It may not even work. The gate must be level in order for the operator to work properly. If it requires two hands to move the gate, you have a problem that needs repaired first. Extremely heavy gates should also have ball bearing style hinges for best results.



Will you accept C.O.D. orders?
Yes.



Will you accept pre-payment by check or money order?
Yes. We reserve the right to make sure checks clear before shipping products and installed, unless they are certified.



Will this operator work on a slide gate?
No, but we have product for slide gate that will.



Does the operator hold the gate closed securely?
It will hold it closed firmly and securely because it includes electric lock accessory.



Will the swing operator work on square OR round posts?
Yes. It will work on square or round posts.



Will this operator work on any kind of swing gate?
Yes, as long as the gate is under 4meters wide and 300 kgm. The operator normally mounts in the center of the height of the gate.



Will the operator work on solid gates?
Although the operator works on solid gates, windy days will cause some aggravation. Solid gates can be a problem because the wind will add more resistance to the gate during opening or closing. This extra force can be enough to activate the built-in reversing safety feature. The operator misinterprets the extra weight as an obstruction. Although this sensitivity is adjustable, it can not compensate for all high winds and over-riding the safety feature all together defeats the purpose of having a safety feature.



Can I avail of safety beam?

Yes with very minimal charge. One can be added easily. A safety beam is a good safety device for any gate operator. If a vehicle or person should break the beam, the gate would stop moving or reverse. The problem with a swinging gate is where should the safety beam located.  If you place it across the gate opening, it does not protect the path of the gate. It would protect the pinch point at the gate latch post. To be thorough, Few people install safety beam because a built-in safety feature that reverses the gate when obstructed is already available.



Can the operator be used for a swinging garage door?
We do not support garage door applications. Wind can also be a problem. See the FAQ above on solid gates.



Do I need to lubricate my gate opener arm?
We do suggest lubricating your arm once per month with a silicon spray. This will assure your arm opens smoothly and reaches its maximum lifetime.



Automatic gates & swing doors product notice



Garage Door: Frequently asked Questions (FAQ):



What is included in the garage door package?

  1. Garage door

  2. Garage door hardware

  3. Garage door operator

  4. 2 remote controller

  5. Safety beam

What is not included in the garage door package?

  1. Wires

  2. Conduit outlet

  3. Circuit breaker

What’s the average life span of a garage door opener?

Average lifespan of 8-25 years can be expected. Garage opener can exceed 25years depending on the use.



How long will it take to install?
A whole package of Automatic Garage Door will take normally 1-2 days for installation.



If I order, how long does it take to get it?
We stock the operators and accessories. Confirmed order can be completed in 1-5 days and additional 1 day for installation.



How is the unit installed?
Unit is installed by qualified installer and electrician. A drill and steel bits, angle grinder, welding machine, screwdriver, and wrenches are all that are required. Running voltage wire may be the hardest part of the installation because wires and conduit outlet need to bury on concrete cement.



Can I put a push button on the operator and control it from the house?
Push button switch is included in the package and can put one anywhere up to 100feet away from the gate.  Installation expense in excess of 100feet will be shouldered by the buyer.



Can I return the product(s)?
We will refund your entire purchase price within 30 days of purchase for any reason. Refunds will be given only when the unit(s) are received. We reserve the right to deduct any damages to product/packaging and installation expenses.



What happens during power failure?
The door can be manually operated by pulling the overhead rope to unlock. The door can then easily lifted to open or pull to close.



If I order, how long does it take to get it?
We stock the operators and accessories and can deliver in 1-5 days for pre-fabricated doors(standard door size). Longer lead time is required (1-2 weeks) for custom made/non standard doors size. Additional 1 day for installation.



Will you accept C.O.D. orders?
Yes.



Will you accept pre-payment by check or money order?
Yes. We reserve the right to make sure checks clear before installation, unless they are certified.



What horsepower is the garage door opener?

One half (1/2) horsepower.



Which model is better, the chain drive, the belt drive or the screw drive?

Each garage door opener has its advantages. The chain drive and belt drive are good in all applications, and the screw drive is best used on one piece doors that tilt rather than go up on a track. The screw drive runs a little slower than the other two garage door openers.  The belt drive is the quietest garage door opener and would be recommended for garages that have a room above them.

The chain drive is the garage door opener that we are offer. It has a dependable performance year after year. Our garage door openers are very reliable and require virtually no maintenance.



What door size do you offer?

Our package includes custom made garage door to fit your existing garage opening up to 8feet high and 16feet width. Pre-fabricated doors is of standard door sizes  and best for on-going and planned construction.



What is Headroom? How much headroom do I need to install garage door opener?

Headroom is the distance from top door to ceiling. Headroom requirement is 14inches minimum.



Does my steel garage door require maintenance?

Your garage door is the largest moving object on your house, and we recommends that the following maintenance be performed on an annual basis (please refer to the installation manual for a detailed)



My operator worked great after the original installation but has quit working after a while. What will I do?
Refer to manual for trouble shooting guide. If problem still persist, call our office for technical assistance to avail of 1 year warranty of parts and service.



Can I paint my steel garage door?

Yes. All steel doors can be painted to match a home's exterior. Steel doors should be painted with high quality exterior latex paint.



Do I need to lock on my garage door?

It may not be necessary to have to lock from outside. The garage operator can firmly secure the door  making it improbable that an intruder would be able to lift your door from the outside.



What safety features are offered?

Automatic safety reverse system when door is obstructed. Additional safety beam to ensure safety of your family and property.



What to do when the header of a garage door has an arch?

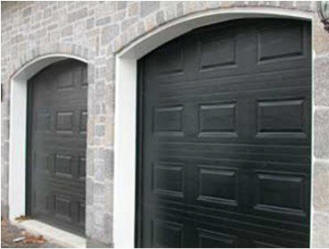

Automatic double garage doors with arched headers.



You must expand the interior frame of the door by the equivalent of 1 ¾ inch (45mm) (the addition of a second 2 in. X 6 in. wood stud, and the thickness of ¾ in. plywood) to be able to slip the external frame weather stripping behind the arch. The frame weather strip will then be airtight around the whole door. We must not forget that the plastic retainer that houses the double-lip rubber is not flexible enough to follow the arch in question. This case being even worse for smaller doors (ex : 8 in wide)

There is also the possibility of building a false arch (thickness of more or less 1in.) that will not obstruct the installation of the door weather stripping.





Is it better to have a double garage door (i.e. 16ft wide) or to have 2 single doors (8ft wide X2)?

There are a few points to consider. First, we must be practical. If for some reason the 16' door does not open (i.e.: mechanical failure), you understand that both vehicles will be stuck inside the garage. To be in that kind of predicament with two single doors is almost impossible. You will at least be able to have access to one of the vehicles.

Finally, the last point would have to do with "design" and "taste". When you have a double garage door and it lines up with the front of the house, it becomes very much part of the style setting of your house. A lot of people don't like to bring so much attention to their garage door. To them it is preferable to install two single doors instead. This way you can maintain a good balance between the doors and the rest of the house.



Will there be any extra costs to build 2 single garage door ?

Yes. The price for two single doors is about twice as for a single two car door. The difference would come from electronically operating the two single doors and garage hardware.






For Inquiries, contact us. Please indicate your contact number and the location of your property so that we can schedule our inspection and installation route in your area. We may charge a nominal service fee for installations outside Metro Manila.
